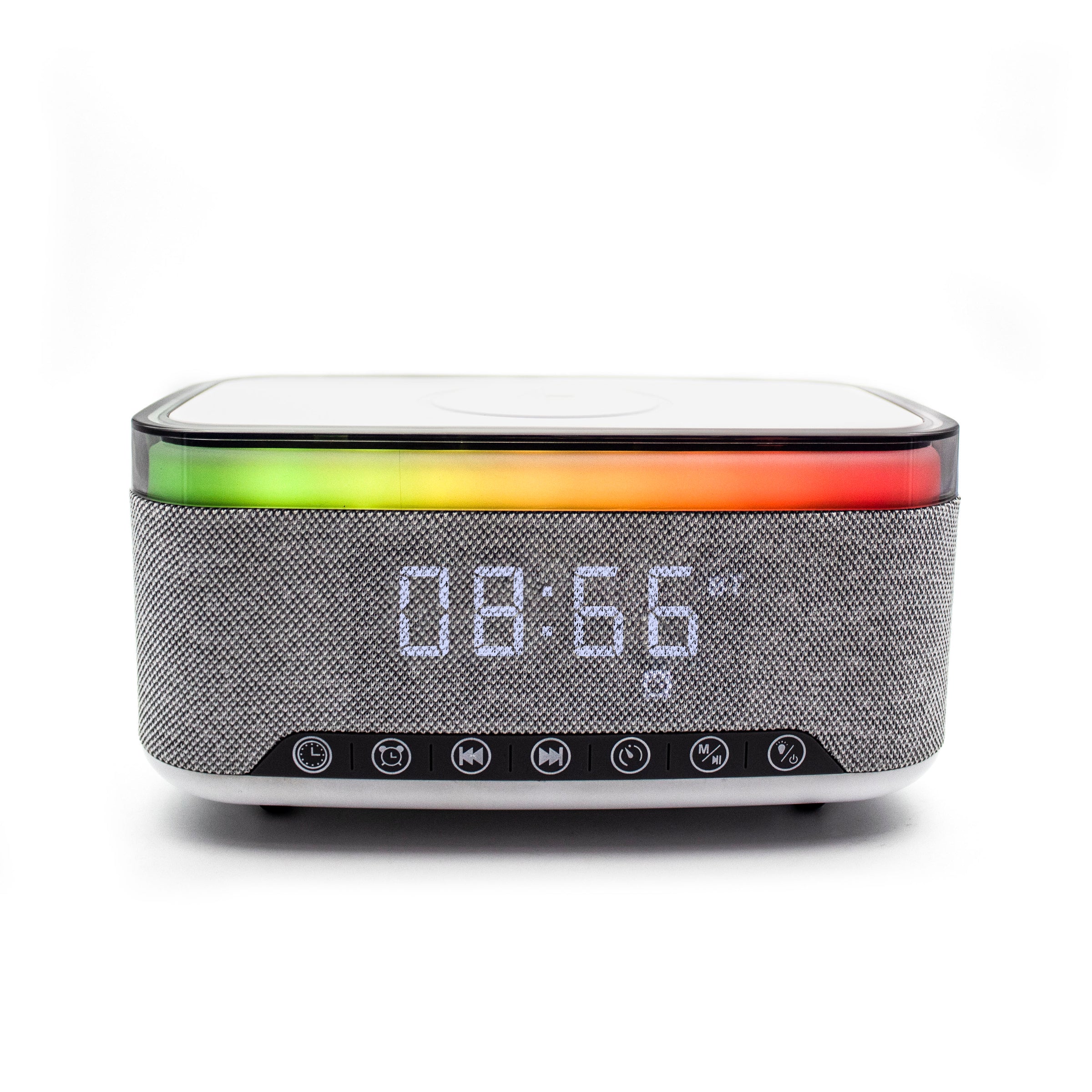

Multifunction Digital Alarm Clock Charging Station Bluetooth Speaker with Color Change Light

Wireless charger use: Plug in the charger to automatically turn on
Long press power/short press light switch
Long press function switch BT/NS mode, short press pause/play Short press the timing 15/30/60, long press the Bluetooth couplet
Short press for the next song, long press to add the volume
Short press for the last song, long press to reduce the volume
Alarm clock setting
Clock Settings

• Technical Parameter:

• Wireless charging power: 15W

• Bluetooth version: 5.3

• Bluetooth name: VI Horizon Dock

• Output power: 5W *2

• Bluetooth frequency: 2.4GHZ-2.48GHZ

• Transmission distance: 10 meters

• Frequency sound range: 50 HZ-20 KHZ

• Sigto noise ratio of whole machine: greater than 75 db

• Built-in lithium battery voltage: 3.7V charging input: DC5V / 500MA

• Product size: 180*100*90mm

• Product weight: 820g

• FM Support: Yes

General Start Up
Start up: long press the start button for two seconds to start up

In Bluetooth Pairing mode, open your device's bluetooth pairing settings. Find the device named, "VI Horizon Dock" and select it to enter pairing mode. After your device has been successfully paired, you will hear a prompt.

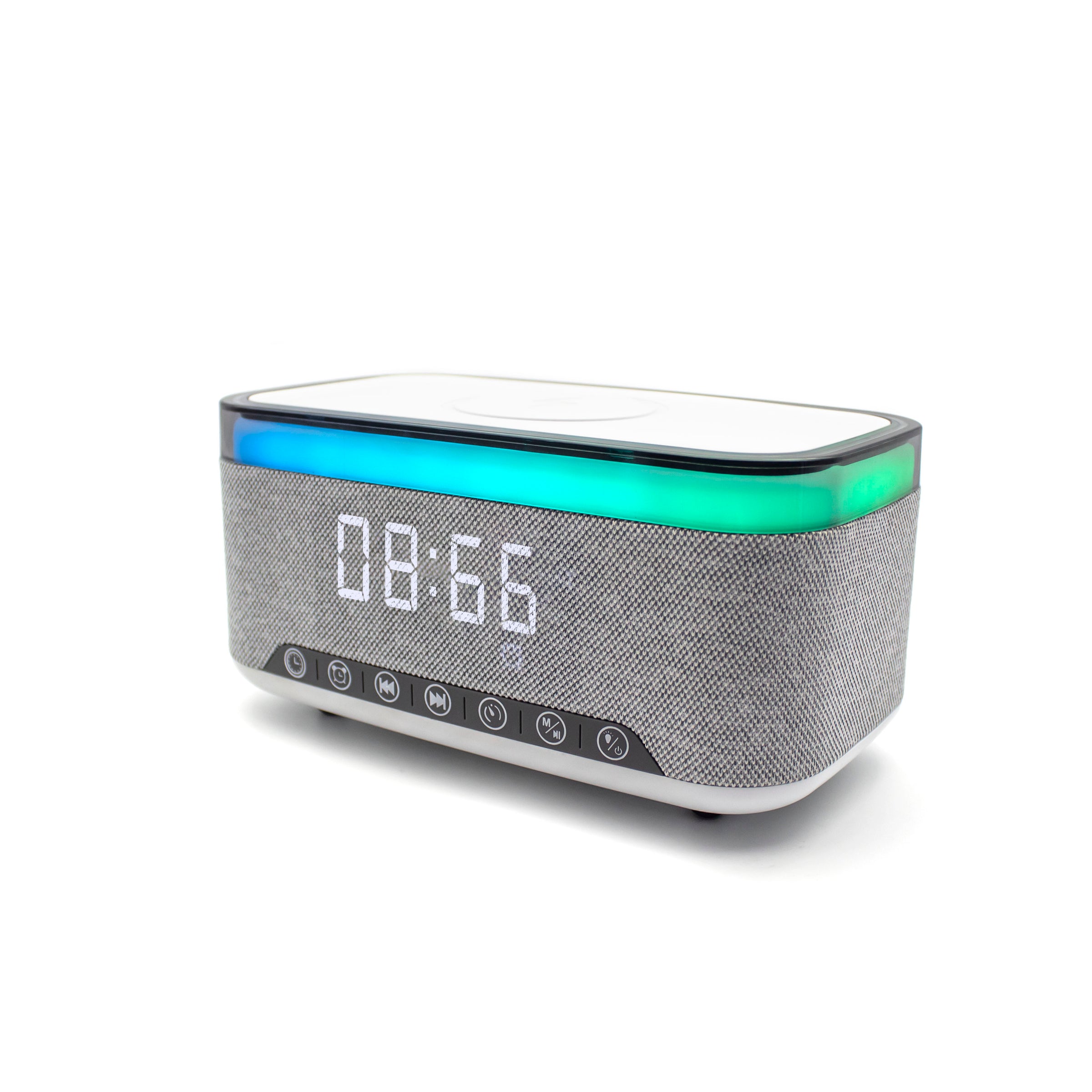

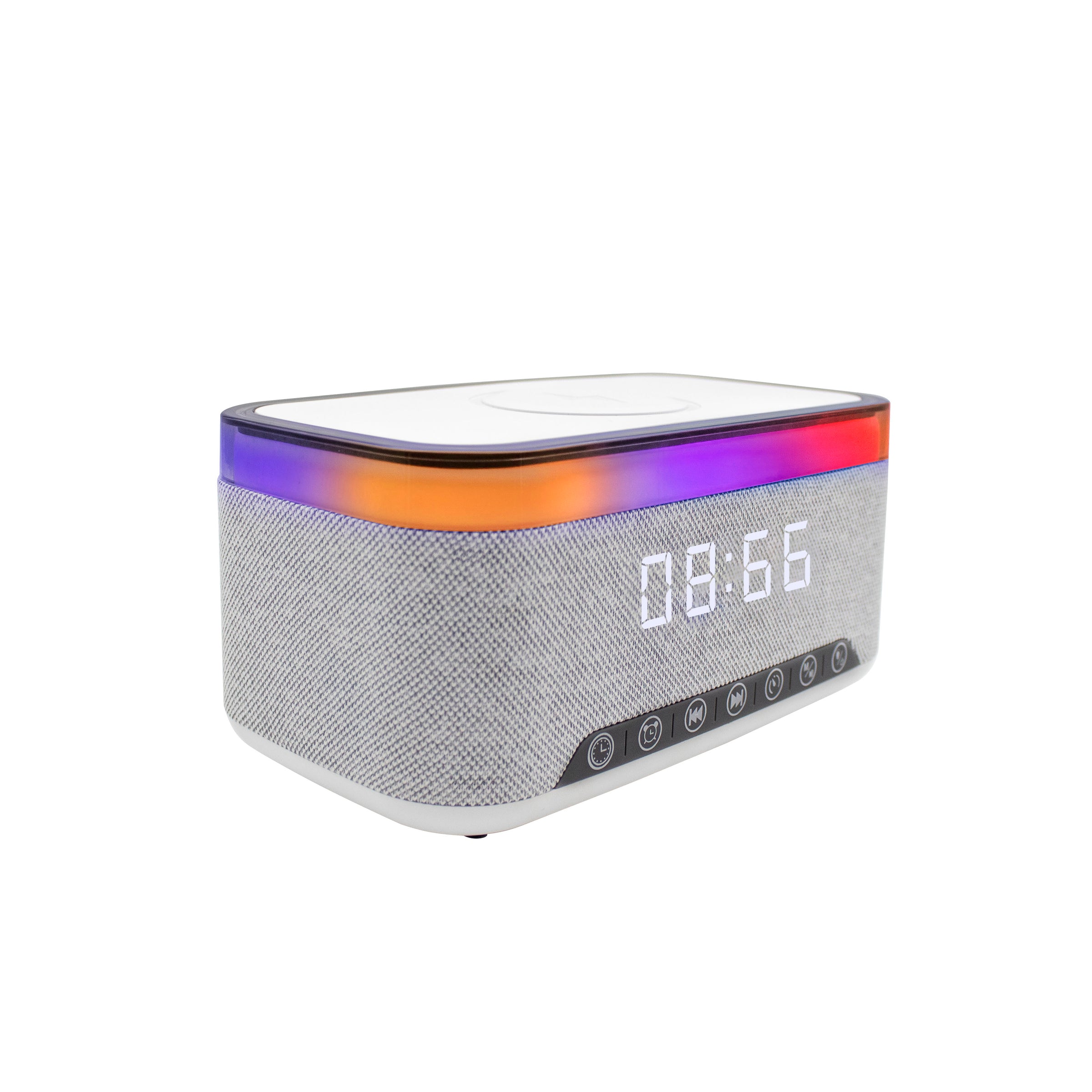

Change Lighting Modes
Short press the button to cycle through different light modes

Noise Machine Mode
When switched to Noise Machine mode, short press the buttons to cycle through different sounds.

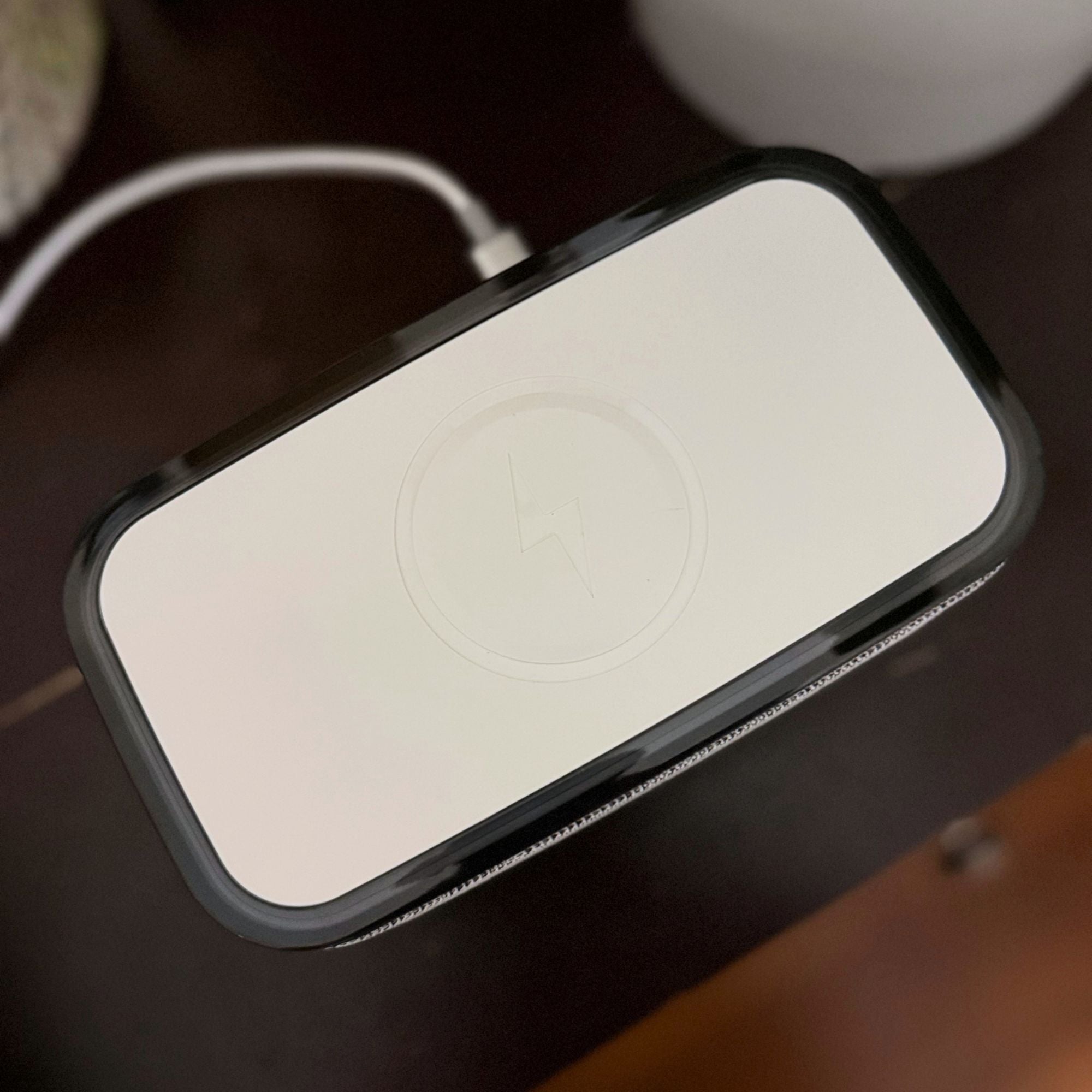

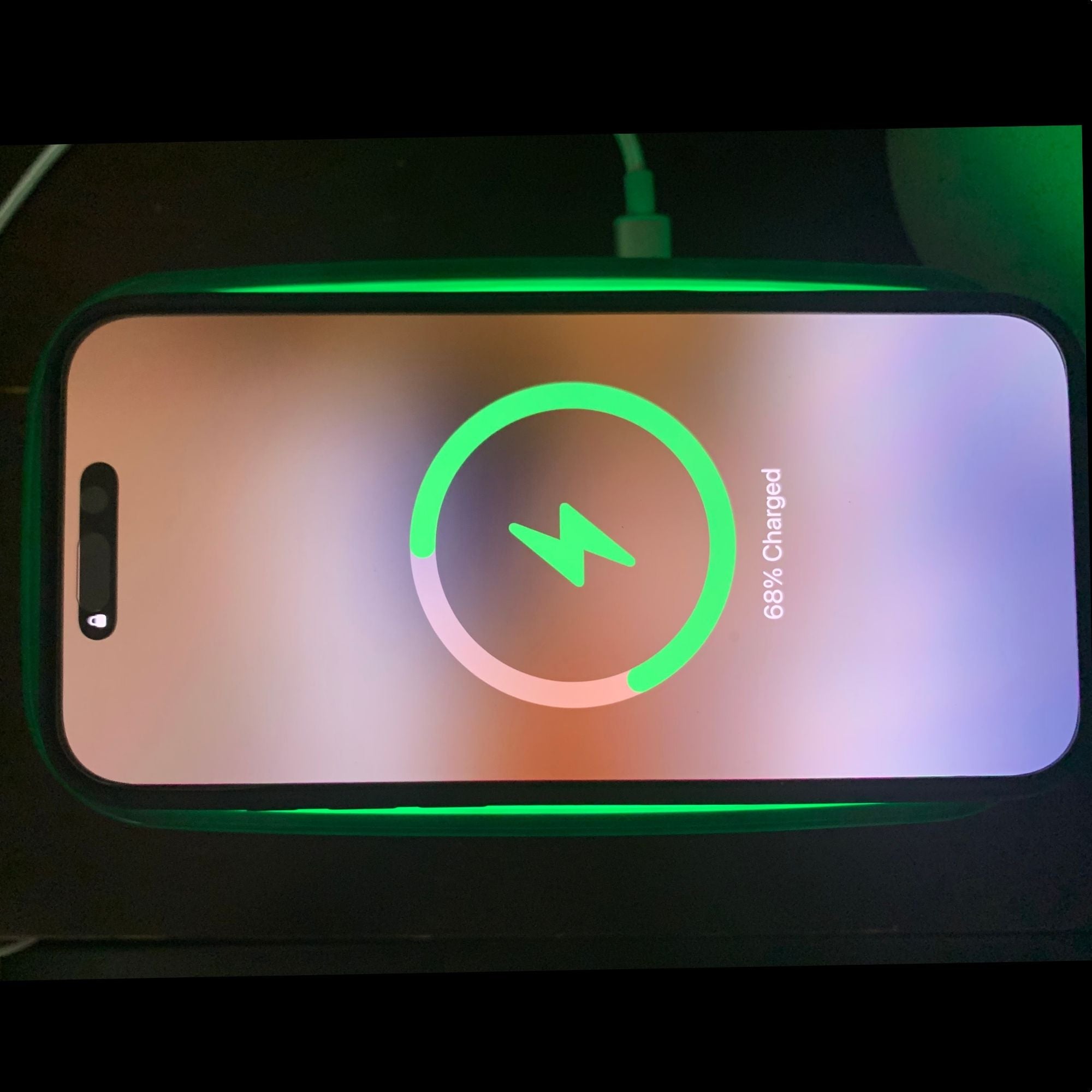

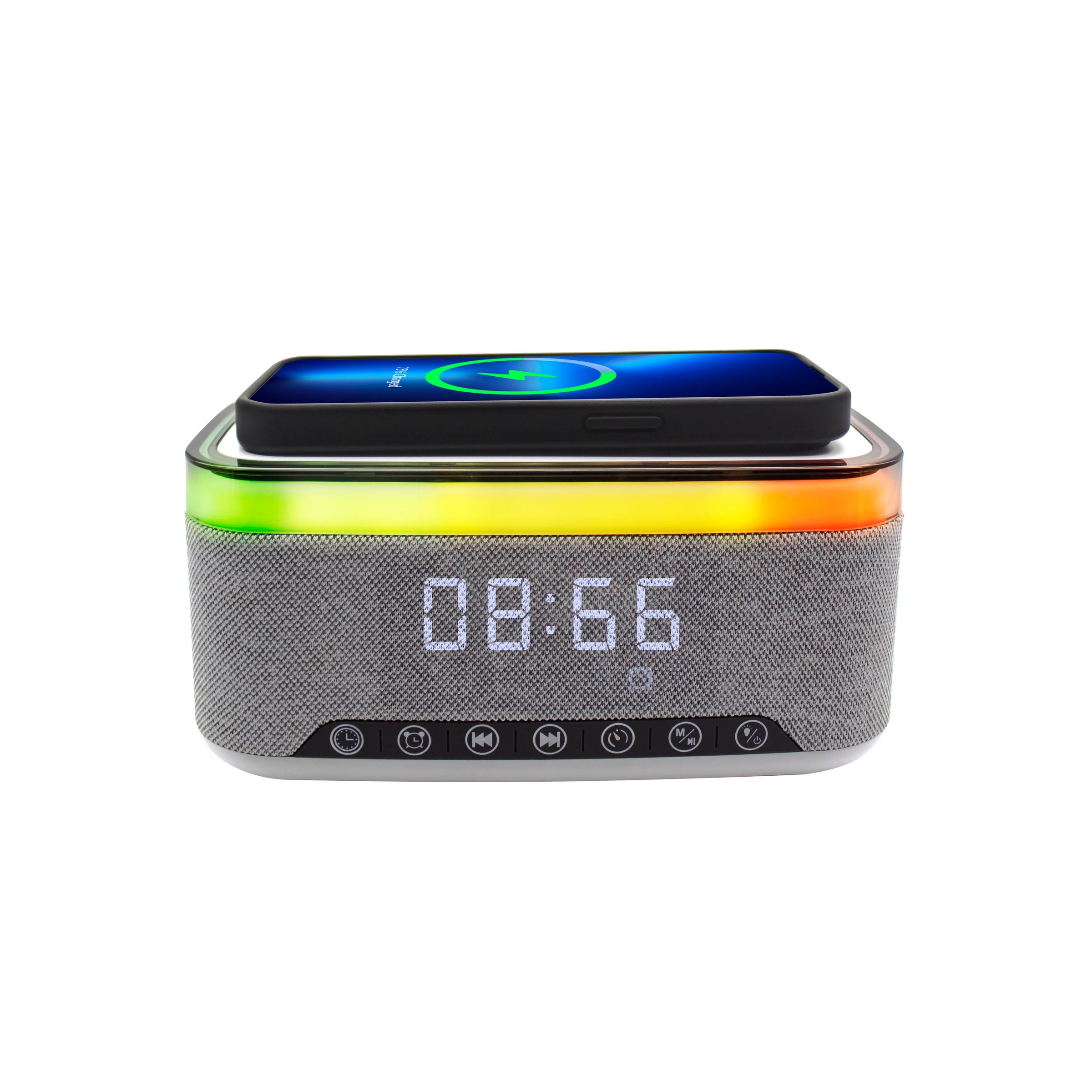

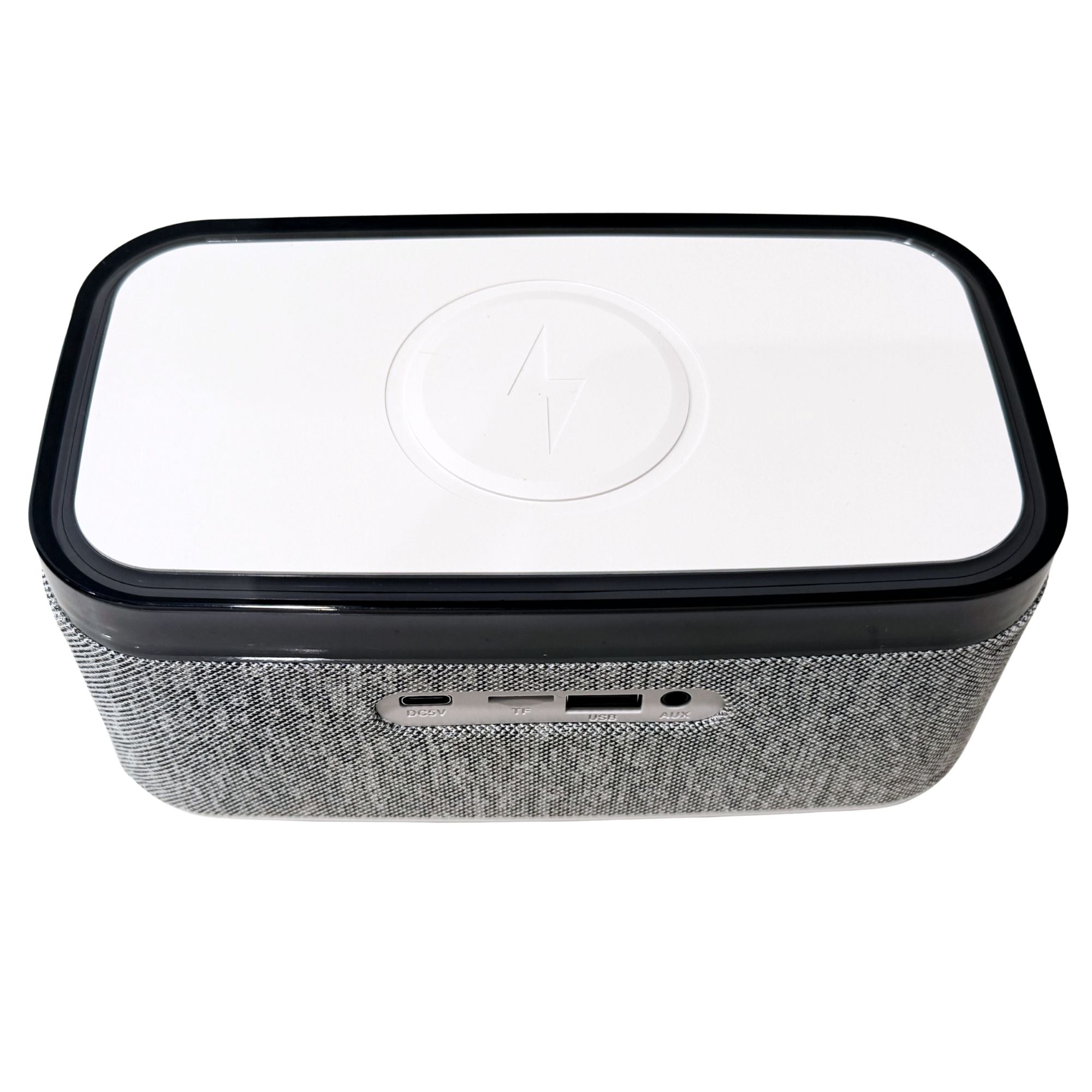

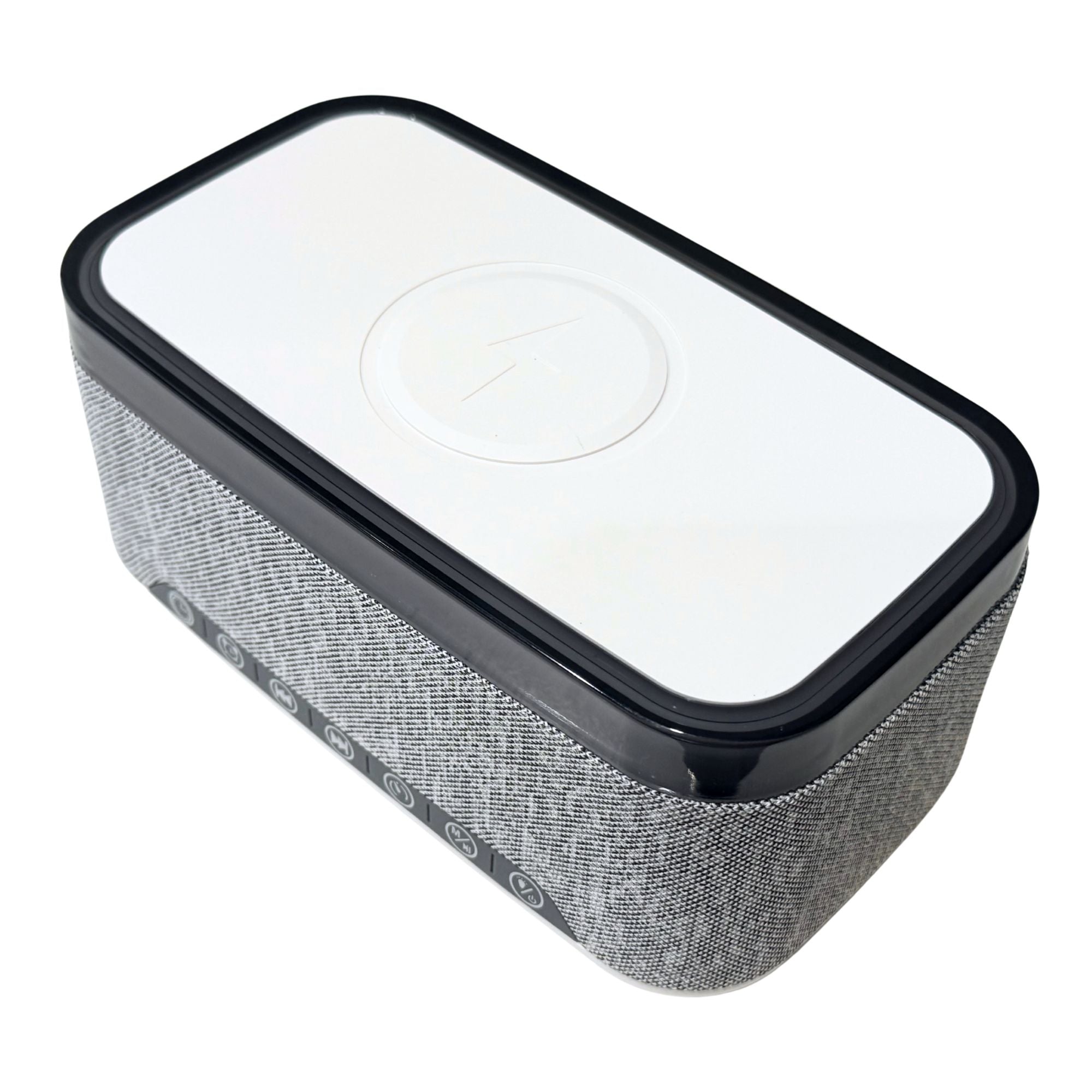

Wireless Charging
To conserve power, the Wireless Charging only works when the dock is plugged in to a power source.

Clock Setting
Press the time key to enter the clock / minute setting, press / adjust the hour / minute +/Forward/-/Rewind

Alarm Clock Setting
Press the alarm button to enter the clock/minute setting, press / to set the hour/minute, press the alarm key, and then press / to select your favorite alarm, there are 7 groups of alarm bells, and finally press the alarm key to open the alarm clock (the alarm sign will appear on the screen after it is successfully set). When the alarm rings, press any key to turn off the alarm. The alarm will automatically ring for 1 minute and then turn off by itself (the alarm normally rings in the shutdown state, please cancel the alarm clock without need)

Cancel the alarm setting: long press the alarm key (the alarm sign will disappear on the screen after it is successfully canceled)

Safety Instructions:
Do not expose the product into the water or humid areas, such as bathrooms.
Please do not hit or drop the product hardly to avoid manual damage.
When not in use for a long time, please turn off the power.

Model No: BS-0931
Rechargeable Li-ion battery 3.7V
1800mAh
FCC ID: 2BHCG-0901
Made in China

This device complies with Part 15 of the
FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

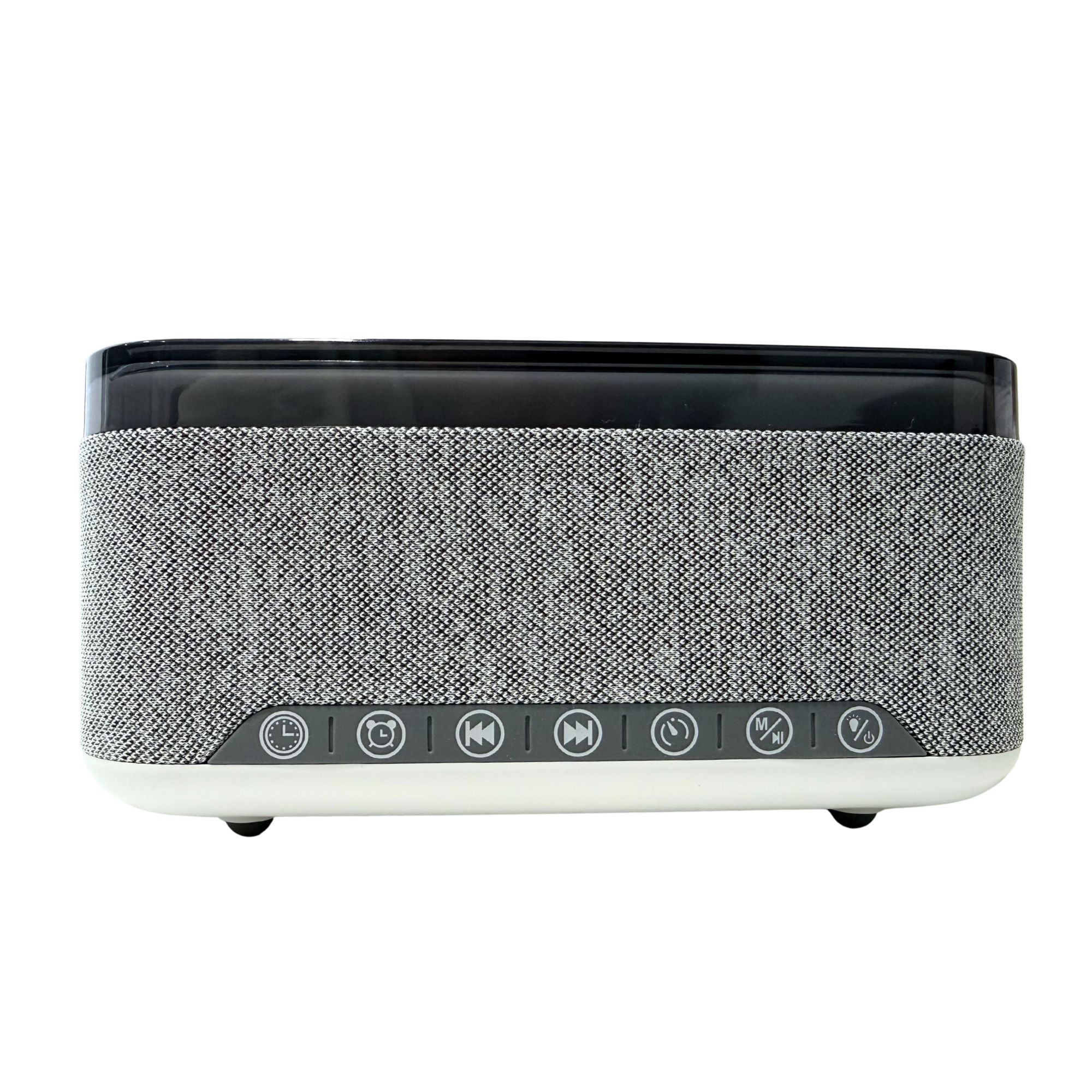

1 ) Set Clock / Time
Long Press to set time. Use the skip buttons to set the desired time. When connecting your phone via T, the time should automatically be set.

2 ) Set Alarm Clock
Long Press to set Alarm Clock Time. Use the skip buttons to set time.

3 ) Skip Back
When in BT mode, use to skip to previous song. When in Sound Machine mode, use to cycle through different sounds.

4 ) Skip Forward
When in BT mode, use to skip to next song. When in Sound Machine mode, use to cycle through different sounds.

5 ) Timer
Cycle through different timer options to automatically turn off the dock

6 ) Modes
Long Press to cycle through Bluetooth, Sound Machine and FM Radio modes.

7 ) Power On/Off & LED Light Mode
Long Press to power on and off the device. Short press to cycle through light modes.

* Wireless Charging function only operates when the dock is plugged in
